Double Beat Valve
Double Beat Valve – Series - 1910
Dual Disc Pressure-Balanced Isolation for High-Pressure Applications
A Double Beat Valve is a globe-type valve featuring two parallel discs and matching seats that operate simultaneously to balance fluid pressure.
This design significantly reduces operating torque, making it ideal for high-pressure and large-diameter pipelines requiring tight shut-off and efficient isolation.
Its balanced configuration minimizes hydraulic load on the stem, resulting in smoother operation and longer service life.
Technical Specifications
Parameter
Shapes Available
Straight-through or Y-pattern body
Size Range
From 50 mm up to 1200 mm (customizable)
Flow Media
Steam, water, condensate, or process fluids
Blade Type
Dual disc (upper and lower) operating in tandem
Sealing Efficiency
High shut-off capability with double-seat design
Sealing Type
Metal-to-metal seating
Temperature Range
Up to 600°C or higher depending on materials
Material of Construction
Carbon steel, cast steel, stainless steel, bronze
Pressure Rating
ANSI Class 300 – 2500 / PN 40 – PN 250
Drive Operations
Manual (handwheel), motorized, or hydraulic actuator
Testing Standards
API 598 / ISO 5208 (pressure and leakage tests)
Design Standards
API 600 / BS 1873 / ASME B16.34
Working Principle:
Open Position
The stem lifts both discs simultaneously off the seats. The balanced pressure on each disc reduces operating effort. Full-bore opening ensures high flow capacity.
Closed Position
Both discs are seated simultaneously for double sealing. Provides tight shut-off under high-pressure conditions.
Balanced Operation
Dual-disc design offsets line pressure on the stem. Enables smooth operation with lower actuator torque compared to single-seat valves.
Key Features & Advantages
- Lower operating force due to balanced disc design
- Reliable double-seal performance under high pressures
- Ideal for large-diameter and high-pressure lines
- Long service life with rugged construction
- Reduced risk of leakage or stem loading
Why Choose Double Beat Valve – Series - 1910?
- Engineering Excellence: Designed and validated using advanced simulation tools for assured reliability.
- Quality Materials: Built with certified high-grade steels for performance under extreme pressures and temperatures.
- Customized Configurations: Available with diverse trims, actuators, and body styles to meet specific process needs.
- Proven Field Reliability: Trusted by leading industries in power, process, and energy sectors.
- Comprehensive Support: Full technical documentation, testing, and after-sales service for complete customer confidence.
SUDE Double Beat Valve Advantage:
SUDE Engineering Pvt Ltd. offers Double Beat Valves engineered for precision isolation and long-term reliability in severe service conditions.
Each valve is designed using advanced CAD and CFD tools, ensuring smooth operation, enhanced durability, and compliance with international design standards.
With a focus on superior metallurgy, tight quality control, and customizable actuation options, SUDE valves deliver unmatched performance in demanding applications.
Applications
Boiler feed water systems
High-pressure steam lines

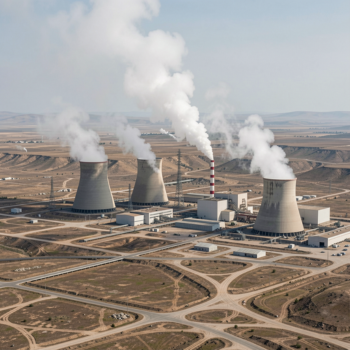

Thermal and nuclear power plants
Hydro power installations (turbine isolation)
Water hammer-prone or critical service pipelines
