Throttle Damper
Throttle Damper – Series 1928
Precision Flow Modulation for Ducts, Stacks, and Process Lines
The Throttle Damper – Series 1928 from SUDE Engineering Private Limited is a high-performance flow control device designed for precise regulation and modulation of airflow or gas flow within ducts, stacks, and process lines. Unlike conventional shut-off dampers that provide only full open/close isolation, the throttle damper enables continuous or proportional control, allowing fine adjustment of flow rates for system balancing, pressure regulation, and fan load optimization.
Engineered for demanding industrial and HVAC applications, the damper ensures smooth and accurate modulation while minimizing turbulence and pressure drop. Its durable blade and pivot mechanism provide consistent performance even under high-temperature, dust-laden, or corrosive air and gas conditions, ensuring operational efficiency and system stability.
Constructed from high-quality, robust materials, the throttle damper is designed for long-term service with minimal maintenance. Its precision engineering allows seamless integration into manual, pneumatic, or electric actuation systems, supporting automated process control and building management systems for responsive and reliable airflow management.
Widely used in power plants, steel and metallurgical industries, chemical processing units, HVAC systems, and industrial ventilation networks, the Throttle Damper reflects SUDE Engineering Private Limited’s commitment to durable design, precise flow control, and high-performance industrial solutions.
Technical Specifications
Parameter
Shapes Available
Circular or rectangular
Size Range
100 mm to 3000 mm (customizable)
Flow Media
Air, flue gas, or process gas
Blade Type
Single flap or multi-louver (parallel or opposed blades)
Material of Construction
Mild Steel, Stainless Steel, or Aluminium
Sealing Type
Metal-to-metal or low-leakage edge seals
Temperature Range
Up to 750°C (higher available with special design)
Pressure Rating
Suitable for low to medium static pressure systems
End Connections
Flanged, slip-on, or welded ends
Installation Orientation
In-line or end-of-duct mounting
Drive Operation
Manual (lever/gear), Electric actuator, or Pneumatic actuator
Design Standards
AMCA 500-D / IS 655 or equivalent
Testing Standards
As per relevant HVAC and process control norms
Working Principle:
Open Position
Damper blades are aligned with airflow direction, allowing maximum flow with minimal restriction.
Throttle / Modulating Mode
Blade(s) adjust to partially restrict the duct area, enabling accurate flow modulation or pressure control. Ideal for fan outlet control and process optimization.
Closed Position (Optional)
Provides substantial flow reduction (not 100% tight shut-off), used for isolating or limiting flow when required.
Actuation Options
Manual (lever, gearbox, hand wheel), Electric (modulating actuator with feedback 0–10V / 4–20mA), or Pneumatic (cylinder with positioner or solenoid) operation.
Key Features & Advantages
- Provides precise and stable flow modulation
- Helps reduce fan load and energy consumption
- Engineered for continuous duty under harsh conditions
- Compatible with BMS/DCS automation systems
- Robust, compact, and customizable for temperature or corrosion resistance
Why Choose Throttle Damper – Series 1928?
- Proven field performance in industrial and HVAC applications
- Smooth operation with accurate modulating response
- Available in heavy-duty and high-temperature variants
- Backed by Sude’s in-house design, testing, and fabrication expertise
SUDE Throttle Damper Advantage:
It provides precise and stable flow modulation, helping to reduce fan load and energy consumption while ensuring efficient system performance.
Engineered for continuous duty in harsh conditions, it is compatible with BMS/DCS automation systems and features a robust, compact design that can be customized for temperature and corrosion resistance.
Applications

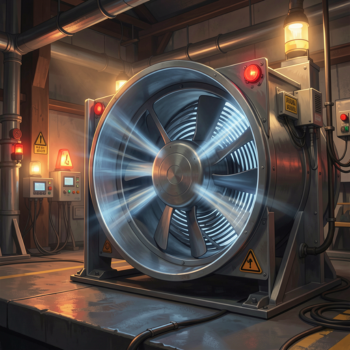

Fan outlet/inlet flow throttling and balancing
Process air or gas modulation in industrial systems
HVAC duct airflow control and pressure balancing

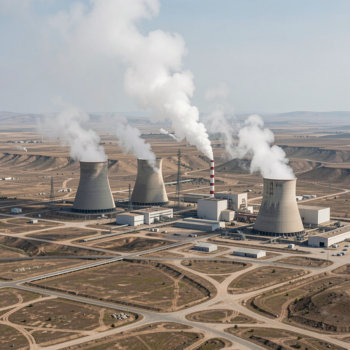

Pollution control and dust extraction systems
