Pneumatic Diaphragm Seated Stainless Steel Valve
Pneumatic Diaphragm Seated Stainless Steel Valve – 1168 Series
The 1168 Series Diaphragm Seated Stainless Steel Valves from SUDE Engineering Pvt. Ltd. are high-purity, hygienic, air-operated control valves engineered for critical process applications in the pharmaceutical, biotechnology, food & beverage, dairy, and clean utility industries.
Manufactured with a precision-machined SS316L stainless steel body and a high-performance plastic piston actuator alternatively stainless steel piston actuator, these valves ensure complete physical isolation between the actuator and the process media. The flexible diaphragm design eliminates dead zones, prevents contamination, and complies with stringent hygienic and sterile processing standards.
The Tri-Clamp (TC) hygienic end connection enables fast installation, easy dismantling, and efficient cleaning, making the 1168 Series ideal for CIP/SIP systems, WFI distribution, purified water loops, clean steam lines, and sterile fluid handling.
Product Range
Metal seated body diaphragm valve with plastic pneumatic cylinder / electric actuator

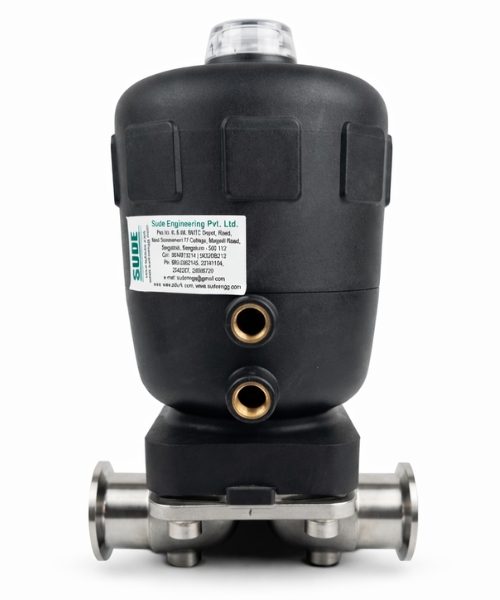

Tri Clover end diaphragm valve with plastic pneumatic cylinder / electric actuator

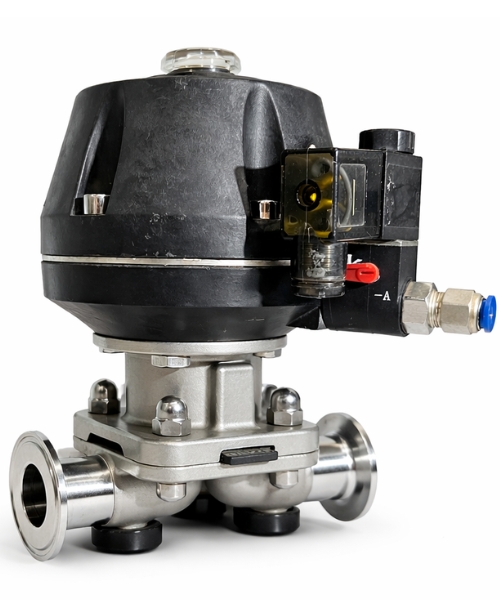

Tri Clover end diaphragm valve with Dome type plastic pneumatic cylinder / electric actuator

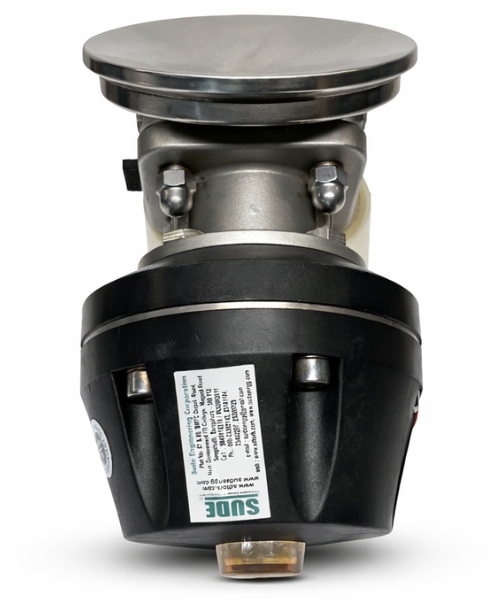

Tank bottom diaphragm valve with dome type plastic pneumatic cylinder / electric actuator
Technical Specifications
Parameter
Valve Size
From 15mm to 100mm
Body Material
SS304 / SS316 / SS316L
Actuator Material
30% Glass-Filled Polyamide (Lightweight & High Strength) or SS304
Stem Material
SS304
Sealing Materials
EPDM / PTFE
O-Ring Material
NBR
Internal Surface Finish
Ra ≤ 0.4 μm
External Surface Finish
Ra ≤ 0.8 μm
Electro-Polished Finish
Optional (Pharma & high-purity applications)
Tri-Clamp (TC)
Hygienic quick-fit connection
Spigot Ends
For orbital welding to ISO seamless tubes (optional)
As per model specification
Pressure Range
Media Temperature
–10°C to +140°C
Ambient Temperature
–10°C to +50°C
Pilot Pressure
4.5 to 8.0 bar
Control Medium
Compressed air / Non-corrosive gas
Single Acting
Normally Closed (Spring Return)
Single Acting
Normally Open (Spring Return)
Double Acting
Without Spring
Design & Construction:
Manufactured with a precision-machined SS316L stainless steel body and a high-performance plastic piston actuator alternatively stainless steel piston actuator. The flexible diaphragm design eliminates dead zones and ensures complete isolation between actuator and process media, supporting hygienic and sterile processing requirements.
Working Principle:
Pneumatic Actuation System
Compressed air activates the plastic piston actuator, smoothly moving the valve stem to open or close the valve for precise and reliable control.
Advanced Diaphragm
A flexible diaphragm tightly seals against the valve seat while fully isolating the actuator from process media, ensuring contamination-free performance.
Hygienic
Designed for leak-free operation, hygienic flow control, and extended service life, even during continuous CIP/SIP cleaning cycles.
Automation & Control Options:
- Electro-pneumatic valve positioner (4–20 mA)
- Valve travel indicator
- Limit switch box with LED indication
- Proximity sensors
- Stroke limiting mechanism
- Manual override
- High-temperature and chemical-resistant diaphragms
Key Features & Advantages
- Hygienic diaphragm design ensures complete isolation of process media
- Zero dead zones for contamination-free CIP/SIP operation
- High-purity SS316L body with excellent corrosion resistance
- Ultra-smooth surface finish minimizes bacterial growth
- Lightweight plastic piston actuator for fast, reliable operation
- NAMUR-ready interface for easy automation and control
- Compact, maintenance-friendly design with quick diaphragm replacement
Optional Accessories:
- Electro-pneumatic valve positioner (4–20 mA)
- Valve travel indicator
- Limit switch box with LED indication
- Proximity sensors
- Stroke limiting mechanism
- Manual override
- High-temperature and chemical-resistant diaphragms
Industries Served
Pharmaceutical Industry
Biotechnology Industry
Healthcare Industry
Dairy Industry
Typical Applications:
Pneumatic Diaphragm Seated Stainless Steel Valves (1168 Series) are designed for hygienic, corrosion-resistant, and high-purity flow control applications where reliable shut-off and precise regulation are essential. These valves are widely used in industries requiring clean, sterile, and contamination-free processing, along with the ability to handle corrosive and aggressive media.
