Slide Gates
Slide Gates – Series 1905
SUDE Slide Gates are commonly used for On-Off Service applications, primarily serving as shut-off devices in material handling systems such as hopper shut-off valves. Beyond hoppers, they are suitable for a variety of industrial applications, including:
Crystallizer discharge gates in sugar industries
Dust extraction systems in steel and cement industries
Product Description:
A Slide Gate is a rugged and reliable mechanical flow control device used to isolate or regulate the flow of bulk materials in gravity-fed or pneumatic conveying systems. It features a flat or curved sliding plate that moves across the material flow path, enabling on/off or modulating control for materials such as powders, grains, ash, and granules.
Low Leakage Dual Blade Slide Gate Isolation Dampers:
These are specially designed for systems prone to material buildup around the blade seals. The dual blade design allows each blade to operate independently, enabling maintenance and cleaning of blade seals without taking the flue gas system out of service.
Technical Specifications
Parameter
Shapes Available
Rectangular or Circular
Size Range
Available up to 500 mm and beyond 12000 mm
Flow Media
Powders, Granules, Grains, Ash, or Bulk Solids
Gate Type
Flat or Curved Sliding Plate
Sealing Efficiency
Dust-tight or Leak-tight (as required)
Sealing Type
Metal-to-Metal / Polymer / Graphite
Temperature Range
Up to 1100°C (higher with special materials)
Material of Construction
Carbon Steel, Stainless Steel, or Abrasion-Resistant Alloys
Pressure Rating
Atmospheric to Moderate Pressure
Drive Operations
Manual / Electric / Pneumatic / Hydraulic
Testing Standards
ASME B16.34 / API 609 / ISO 5208 / ANSI FCI 70-2
Design Standards
ASME / ISO / Custom Design as per Application
Working Principle:
Open Position
The gate is fully retracted, allowing unrestricted material flow through the passage.
Modulating Position
The gate is partially open, precisely controlling the material discharge rate.
Closed Position
The gate is fully shut, ensuring complete flow isolation for maintenance or process control.
Actuation Options:
Manual
Handwheel or lever-operated screw drive
Electric
Motorized actuator with feedback control
Pneumatic
Cylinder-operated with positioner
Hydraulic
High-torque actuation for heavy-duty gates
Key Features & Advantages
- Simple yet robust construction for demanding use
- Reliable flow isolation and precise regulation
- Easy automation or manual control flexibility
- Dust-tight and leak-tight sealing options
- Ideal for abrasive and high-temperature material handling
Why Choose Slide Gates – Series 1905?
- Proven design for industrial bulk material control systems
- Customized construction for size, temperature, and media type
- Engineered for durability, minimal leakage, and smooth operation
- Complete design, fabrication, and testing within SUDE facilities
- Backed by strong after-sales and service support network
SUDE Slide Gates Advantage:
At SUDE Engineering Pvt Ltd., every Slide Gate is designed for optimum performance in bulk material flow control.
Our in-house team ensures precise machining, durable sealing systems, and robust actuation options for high reliability and low maintenance.
With custom design flexibility, abrasion-resistant materials, and high-temperature construction, SUDE Slide Gates deliver consistent operation, safety, and longevity in critical process lines.
Applications
Cement and mining industries
Steel industries

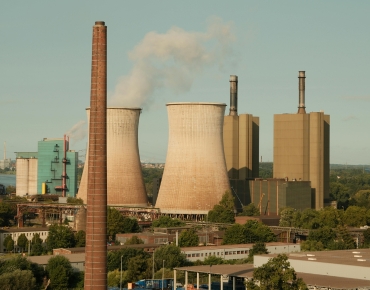

Power plant ash and dust handling systems
