Diverter Damper
Diverter Damper – Series- 1905
SUDE Engineering Pvt. Ltd. designs and manufactures the Diverter Damper – Series 1905 as a heavy-duty solution for diverting, isolating, and controlling gas flow in large industrial ducting systems. Engineered for severe service conditions, SUDE Diverter Dampers ensure safe, efficient, and reliable gas management in critical process applications.
A SUDE Diverter Damper operates using a robust rotating or sliding blade mechanism, allowing hot gases or exhaust streams to be redirected between multiple outlets or completely isolated when required. The design ensures smooth operation, high structural stability, and dependable performance even under high temperature, high pressure, and fluctuating process conditions.
Manufactured with precision and stringent quality control, SUDE Diverter Dampers are ideally suited for power plants, gas turbine exhaust systems, waste heat recovery units (WHRU), refineries, cement, and steel plants.
Product Range

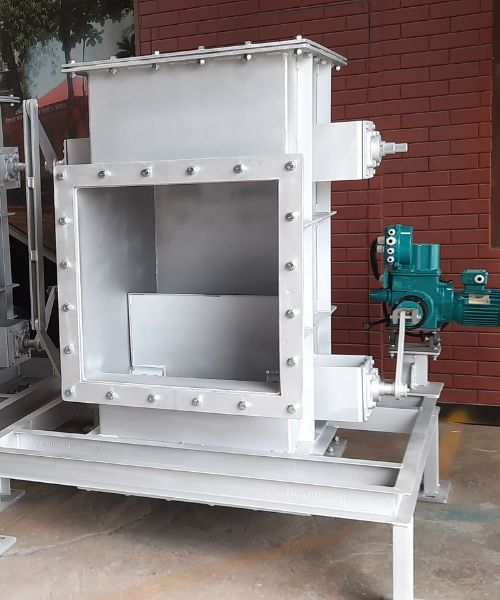

Electric Operated Rectangular Diverter Damper

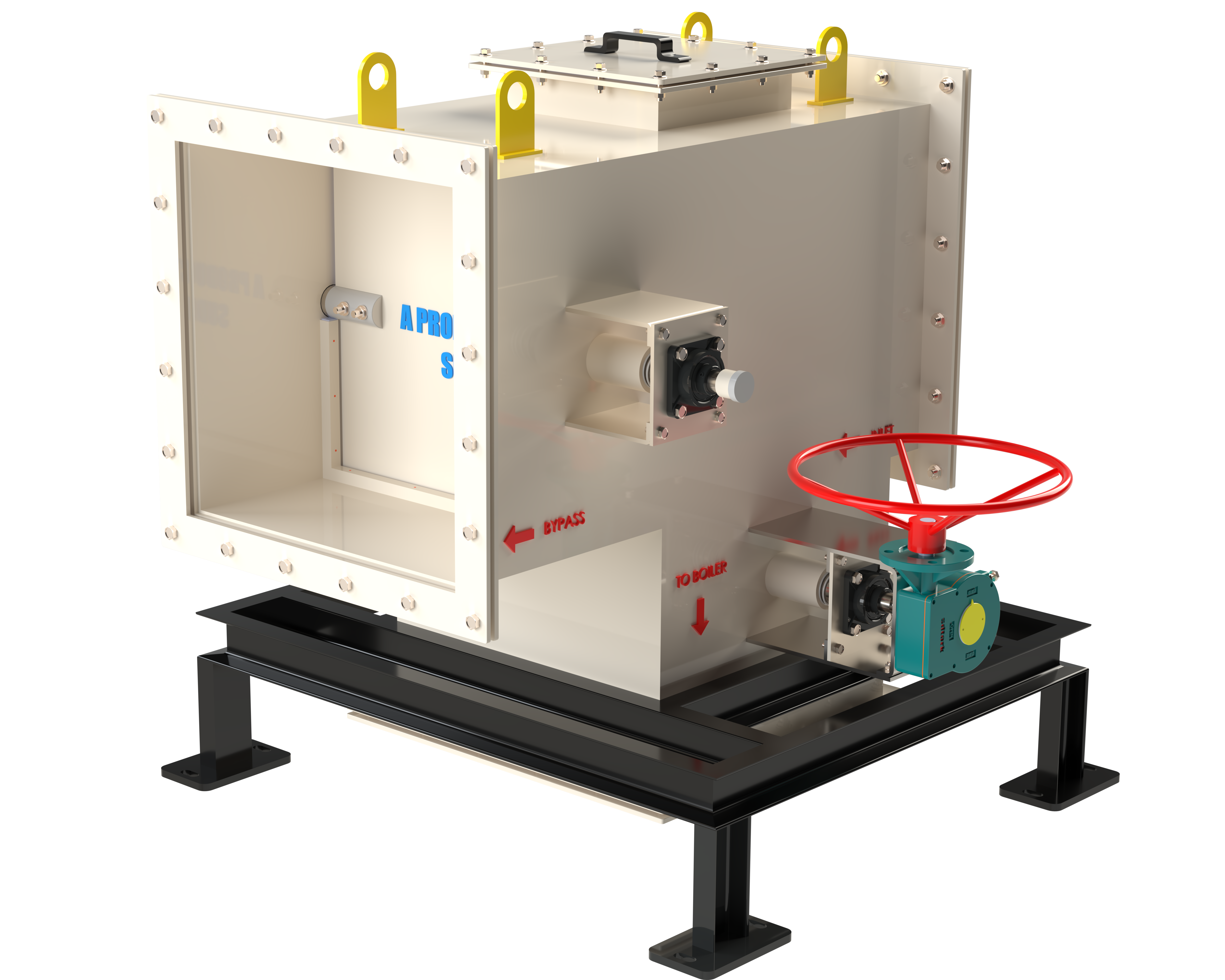

Diverter Damper With Manual Override

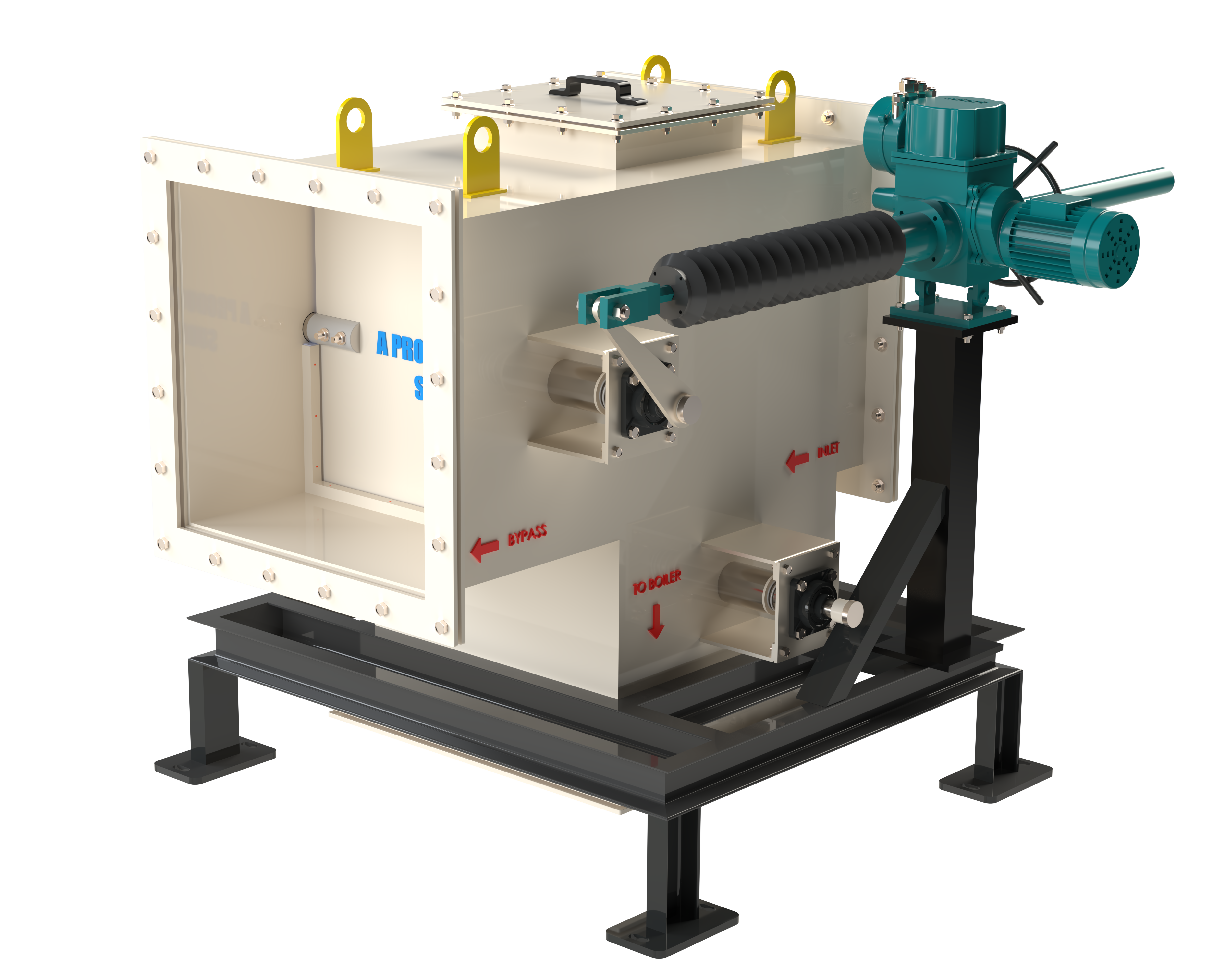

Motorised Diverter Damper

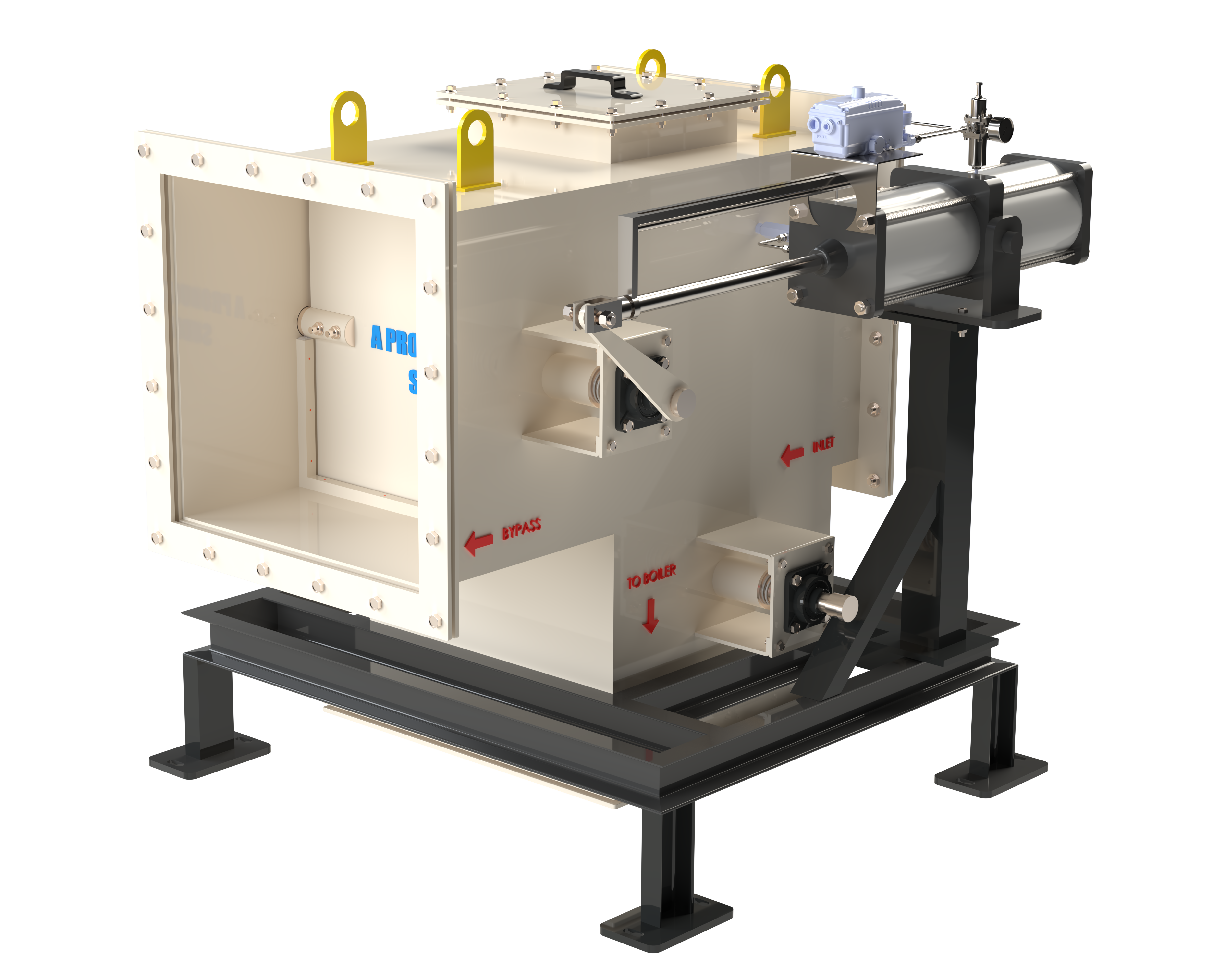

Pneumatic Cylinder Operated Diverter Damper

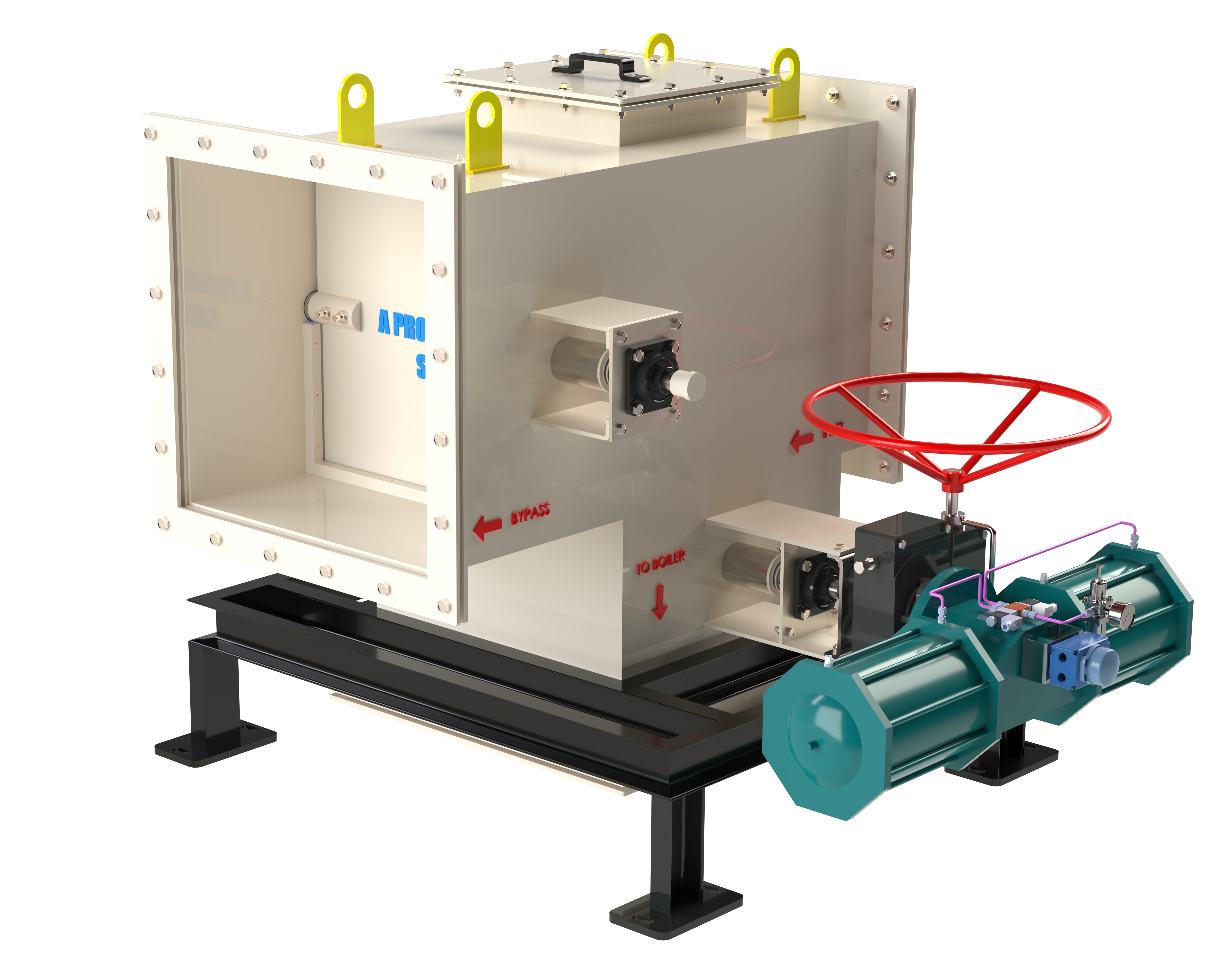

Pneumatic Diverter Damper
Technical Specifications
Parameter
Shapes Available
Rectangular or Circular (based on duct geometry)
Size Range
Available up to 200 mm and beyond 3000 mm
Flow Media
Flue Gas, Process Gas, and Air
Blade Type
Flat Plate – Rotating or Sliding Type for Flow Diversion/Isolation
Sealing Efficiency
High sealing integrity (Zero-Leakage options available)
Sealing Type
Metal-to-Metal or Pressurized Air Seal
Temperature Range
Up to 1000°C (with cooling and alloy options)
Material of Construction
Carbon Steel, Stainless Steel, or High-Temperature Alloys
Pressure Rating
Low to Moderate Pressure Systems
Drive Operations
Electric / Pneumatic / Hydraulic Actuator
Testing Standards
AMCA 511 / ASME AG-1 / API 609 / ANSI FCI 70-2
Design Standards
ASME B16.34 / ISO 5752 / BS EN 558 / API 609
Working Principle:
Open Position
Blade is aligned to allow gas to flow freely through the main duct path with no restriction.
Closing Motion
The actuator rotates or slides the blade into position, beginning to divert or isolate the gas flow.
Closed Position
The blade fully blocks or redirects the gas stream to a bypass outlet. High-performance sealing surfaces or pressurized air systems ensure tight shut-off during isolation.
Actuation Options:
Manual
Rarely used (due to large size and torque requirements)
Electric
Motor-driven for precise control
Pneumatic
Rapid operation for systems requiring quick response
Hydraulic
For large-scale or high-torque industrial applications
Key Features & Advantages
- Enables full flow diversion or total isolation within large ducts
- Designed for high-temperature and corrosive gas environments
- Achieves tight shut-off (zero-leakage) with advanced sealing technology
- Built for heavy-duty operation and long service life
- Fully automated actuation ensures safe and efficient system response
Why Choose Diverter Series- 1905?
- Proven design for power, energy, and gas turbine systems
- Tailor-made for large-scale ducting and bypass operations
- Engineered for tight shut-off, long life, and high reliability
- Comprehensive design, fabrication, and testing under one roof
- Supported by expert service and commissioning teams
SUDE Diverter Damper Advantage:
At SUDE Engineering Pvt Ltd., each Diverter Damper is custom-engineered for critical bypass and isolation applications.
Our designs incorporate precision machining, advanced sealing mechanisms, and high-temperature resistant alloys to deliver unmatched durability and performance.
Through computational flow analysis (CFD) and in-house manufacturing excellence, SUDE ensures each unit achieves optimal gas distribution, low leakage, and high reliability even in extreme environments.
Paired with SDTORK actuators, SUDE Diverter Dampers deliver automated, fail-safe operation suited for continuous industrial duty.
Applications
Gas turbine exhaust systems
Power plants

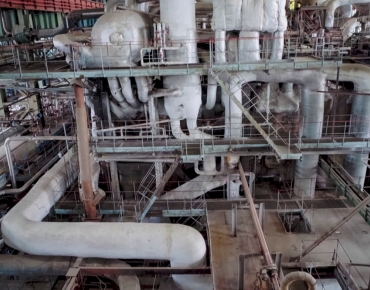

Industrial ventilation and process gas management
Air pollution control systems

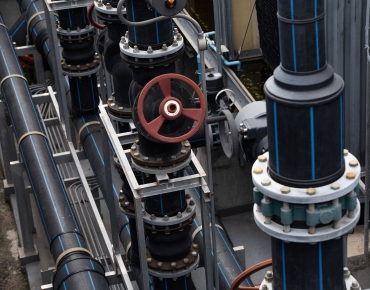

Waste-to-energy and incineration plants
