Pneumatic Operated Metal Ball Valves
Pneumatic Operated Metal Ball Valve - 1362, 1363, Series
SUDE Pneumatic Operated Ball Valves are high-performance, quarter-turn rotary valves engineered for reliable shut-off, precise flow control, mixing, and diverting applications across a wide range of industries. These valves incorporate precision-machined floating or trunnion-mounted balls combined with robust pneumatic actuators, ensuring bubble-tight sealing, smooth operation, low operating torque, and long service life.
The product range includes Pneumatic Operated 2-Way and 3-Way Ball Valves, Butt-Weld, I-Line, and Sanitary Clamp Metallic Ball Valves, as well as special hygienic and zero-bacteria designs for critical applications. Designed for automation-ready integration, SUDE pneumatic ball valves provide a superior alternative to conventional gate, globe, or solenoid valves in high-cycle, continuous-duty, and harsh operating environments.
Manufactured using Carbon Steel, SS304, SS316 / SS316L, and fitted with advanced PTFE or reinforced soft seats, these valves deliver exceptional reliability, versatility, and low maintenance across industrial automation, process control, water, oil, gas, steam, chemical, and hygienic applications.
Technical Specifications
Parameter
Valve Sizes
¼″ to 24″ (larger sizes on request)
Operation 1
Pneumatic Operated 2 Way Ball Valves - Full / Reduced Bore – 1362 Series
Operation 2
Pneumatic Operated 3 Way Ball Valves – Mixing & Diverting (1363 Series)
Operation 3
Pneumatic Operated Butt Weld Metallic Ball Valves – Zero Bacteria (1367 Series)
Operation 4
Pneumatic Operated I-Line Metallic Ball Valves – Zero Leakage, Hygienic Design
Operation 5
Pneumatic Operated Sanitary Clamp Ball Valves Hygienic & CIP/SIP Compatible
Material Options
Carbon Steel, SS304, SS316, SS316L, Brass
End Connections
BSP, NPT, Flanged, Socket Weld, Butt Weld, I-Line, Sanitary Clamp
Pneumatic Actuators
Aluminium / Plastic / Stainless Steel Actuators
Double Acting
Spring Return Configurations
Design & Construction:
Precision-machined floating or trunnion-mounted balls combined with pneumatic actuators provide bubble-tight sealing, smooth quarter-turn operation, and long service life. Designed for automation-ready integration and continuous-duty industrial environments.
Working Principle:
Working Principle
When compressed air is supplied to the pneumatic actuator, it converts air pressure into rotary motion, rotating the valve stem and ball by 90° (quarter-turn).
Open Position
The ball bore aligns with the pipeline, allowing unrestricted flow.
Closed Position
The ball rotates perpendicular to the flow path, completely blocking the media and ensuring tight shut-off.
3-Way Operation
L-Port or T-Port ball configuration enables mixing or diverting flow between multiple pipelines.
Modulating Control (Optional)
A positioner-controlled actuator allows throttling up to 60° for accurate flow regulation.
Automation & Control Options:
- Control Modes: On/Off, Modulating (via Positioner), Inching
- Actuator Types: Double Acting, Spring Return (Fail-Safe)
- Air Control: Solenoid Valve (3/2, 5/2), Air Filter Regulator (FRL)
- Feedback Systems: Limit Switch Box, Position Transmitter (4–20 mA / 0–10 V)
- Position Control: Valve Positioner, PID Controller (PT-100 Integration)
- Communication: MODBUS / PLC / SCADA Integration (via positioner)
Key Features & Advantages
- Bubble-Tight Shut-Off – Precision-machined ball and advanced PTFE seating ensure zero leakage.
- Quick Quarter-Turn Operation – Only 90° rotation enables fast and reliable opening and closing.
- High Flow Efficiency – Full-bore design minimizes pressure drop and energy loss.
- Automation Ready Design – ISO mounting pad allows easy actuator integration without valve modification.
- Rugged & Durable Construction – Available in metallic and plastic materials for harsh and corrosive environments.
- Low Maintenance & Long Life – Wear-resistant seats and hardened ball surfaces ensure extended service life.
- Superior Alternative to Solenoid Valves – Suitable for high temperature, dirty media, vacuum, and continuous ON conditions.
- Hygienic & Zero-Bacteria Options – Electro-polished, self-draining designs suitable for pharmaceutical, food, and biotech applications.
Optional Accessories:
- Limit Switch Box
- Position Transmitter
- Valve Positioner
- Manual Override
- Flow Restrictor & Silencer
- PID Controller with PT-100
- Air Filter Regulator with Lubricator
Industries Served

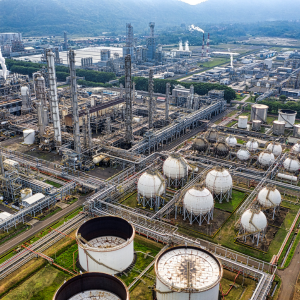

Food & Beverage Processing

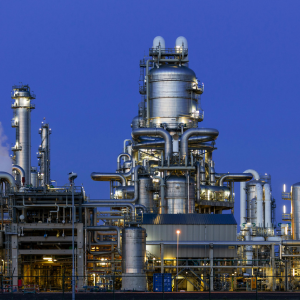

Pharmaceutical & Bio-Pharma
HVAC & Building Automation

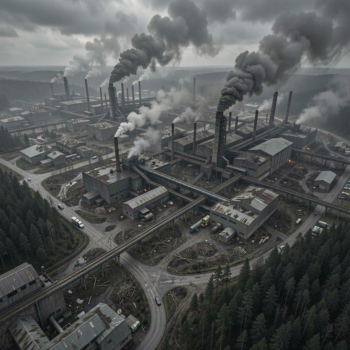

Pulp & Paper
Typical Applications:
Automated shut-off, mixing, diverting, and throttling applications in water, oil, gas, steam, chemical, hygienic, and industrial process systems.
